Structural Oriel Windows Integrated Within Historic Masonry

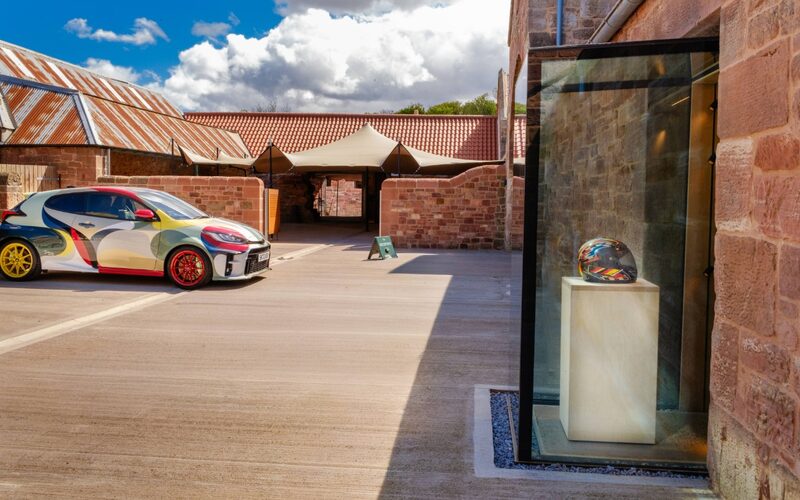

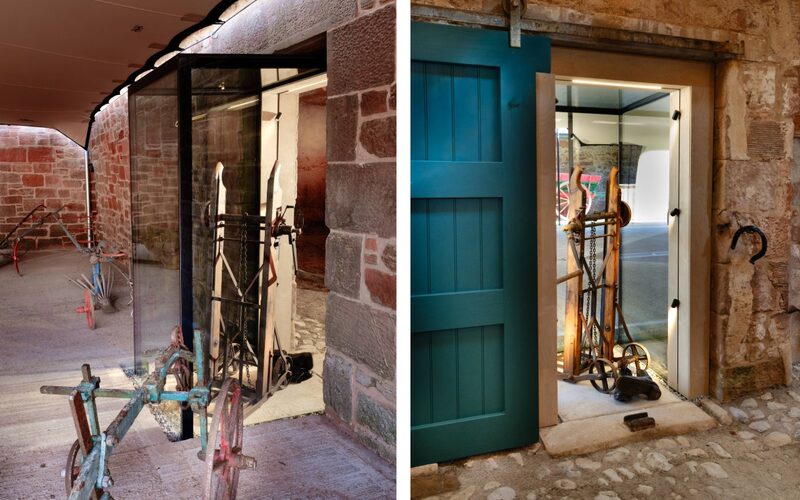

IQ Glass addressed the challenge of introducing light and outlook through the design and installation of bespoke Oriel windows in East Lothian, using the Invisio structural glazing system. These projecting glass elements create framed views and increase daylight penetration while maintaining a minimal visual presence.

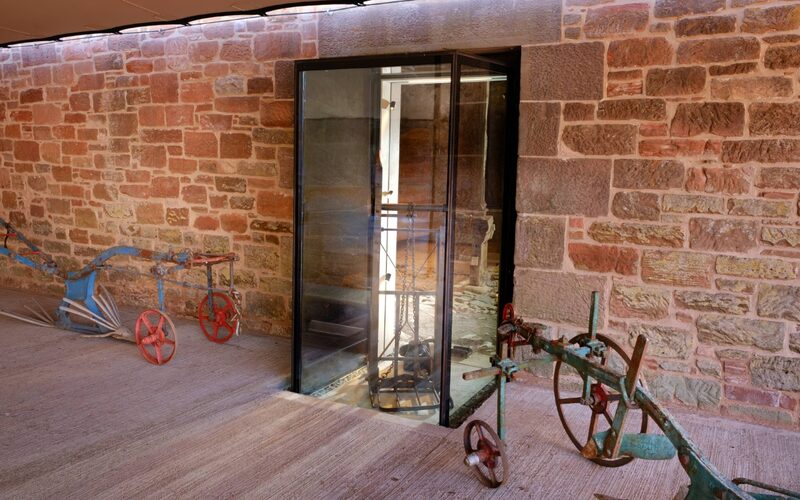

The Oriel window boxes were designed to sit back within the existing wall reveals, ensuring that the original stonework remained undisturbed. This detailing was critical in achieving a contemporary glazed intervention without compromising the integrity of the heritage facade.

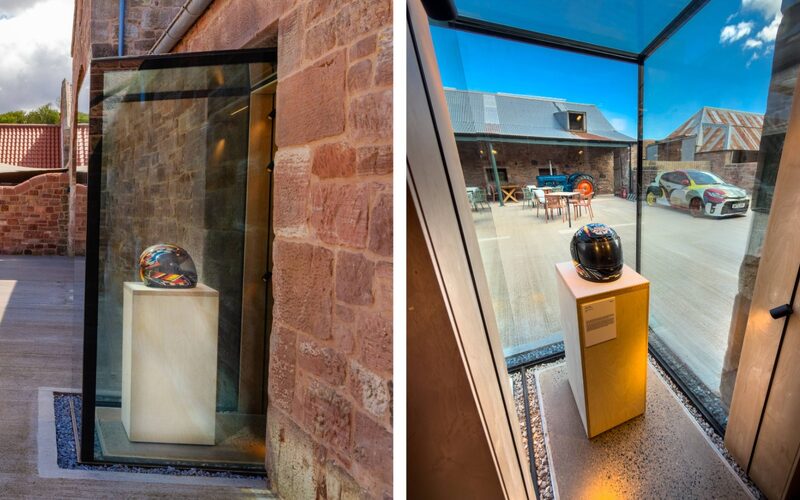

Each unit was constructed using frameless structural glass, with vertical and horizontal panes joined using structural silicone to eliminate visible framing. The result is a clean, precise glazing detail that reads as part of the architectural composition rather than an applied addition. With double glazed toughened glass incorporating solar control, low E coatings and laminated interlayers for strength, the glazing meets modern performance requirements while delivering high levels of clarity and consistency of finish.
Fire Rated Walk On Glass for the Gallery Conversion

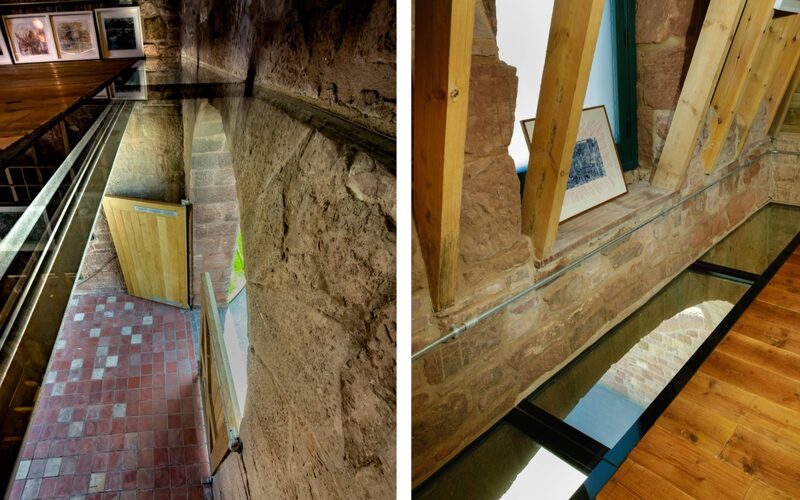

In addition to the Oriel windows, IQ Glass supplied and installed fire rated walk on structural glass floors within the converted gallery spaces.

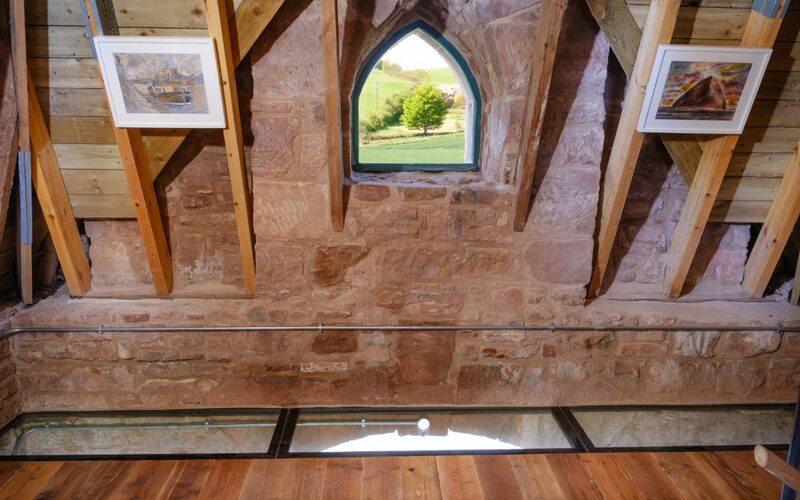

The walk on glazing was designed as a frameless installation, with panels joined using fire rated structural silicone to maintain a clean and uninterrupted surface. The glass was specified as clear heat strengthened laminated fire glass with an anti-slip finish, ensuring compliance and practicality within a public environment.
To achieve a seamless architectural outcome, the floor glazing was recessed into the surrounding structure, allowing it to sit flush within the floor build-up. This creates a refined finish that aligns with the wider design intent, where contemporary interventions are integrated with precision into the historic building.
Together, these glazing elements support the transformation of the steading into a functional cultural space while maintaining visual clarity and continuity throughout the interiors.
